SEC-E9 Cut 2018 VW/Audi HU162T Keys

How to Cut 2018 VW/ Audi HU162T keys by SEC-E9 Key Cutting Machine.

 Procedures:

 Prepare the key and cylinder for new VW HU162T (9)


Press “Search” button in the main interface
Select “Key blank”-> Input “HU162T”
Press “Search”-> Select “SILCA-HU162 (9)


Come to the basic data page for HU162T
Firstly decode side A of original key


Fix the side A of original key on#1 car key clamp


Confirm it’s side A, and then press “Decode”


Decoding side A


Side A is decoded successfully


Press the key image to decode side B of the original key
Note: There is a small groove on side B


Fix side B on HU162T clamp, and tighten the screw


Install HU162T onto #1 car key clamp
Press “Decode” button to enter decoding page
Select the most right blue icon as sense key location and check “Round off”


Decoding side B
Complete decoding side B


Remove HU162T clamp and put a new key blank for copy


Select side A, and press “Cut” button to enter cutting page
Replace the right decoder with a 1.9mm cutter
Note: Remember use 1.9mm cutter to cut HU162T keys on #1 car key clamp
Cutting side A


Finish cutting side A
Clean the clamp and blank key
Fix the other side of the blank key
Select side B by press the key image
Press “Cut”
Remember to cut side B with 2.0mm cutter on #1 car key clamp


Install HU162T clamp to cut side B
Cutting side B is done
Clean the clamp and blank key
Remove HU162T clamp and prepare to cut side C on #1 car key clamp
Cutting side C is done

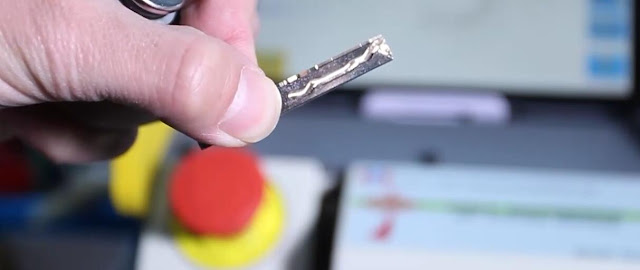

Use it to open the cylinder successfully!
